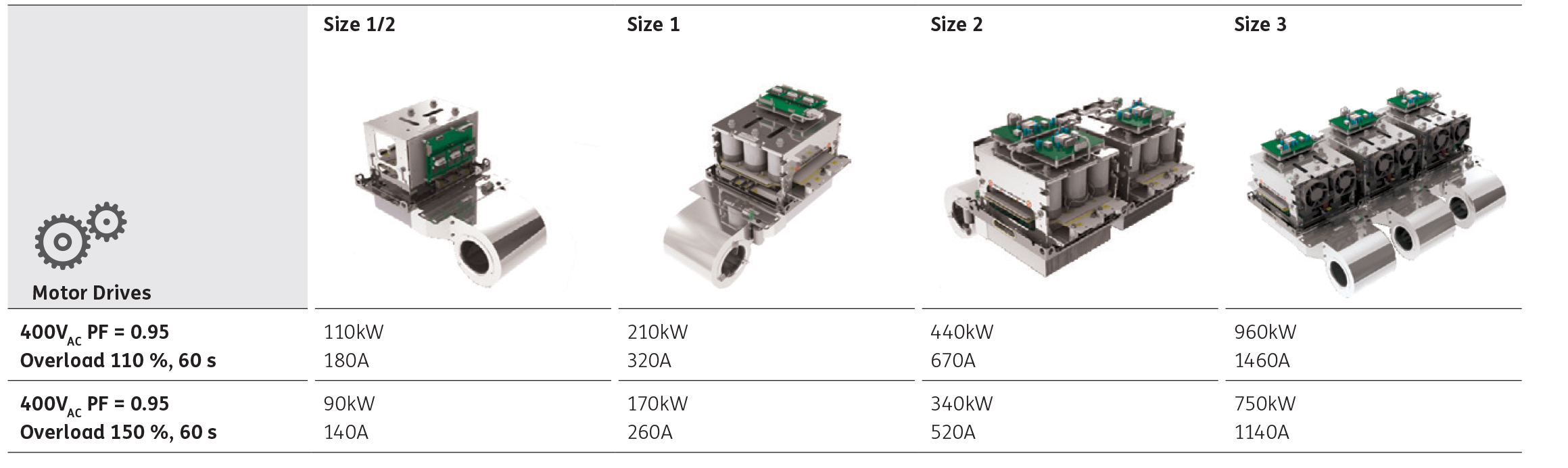

AC drive power converters

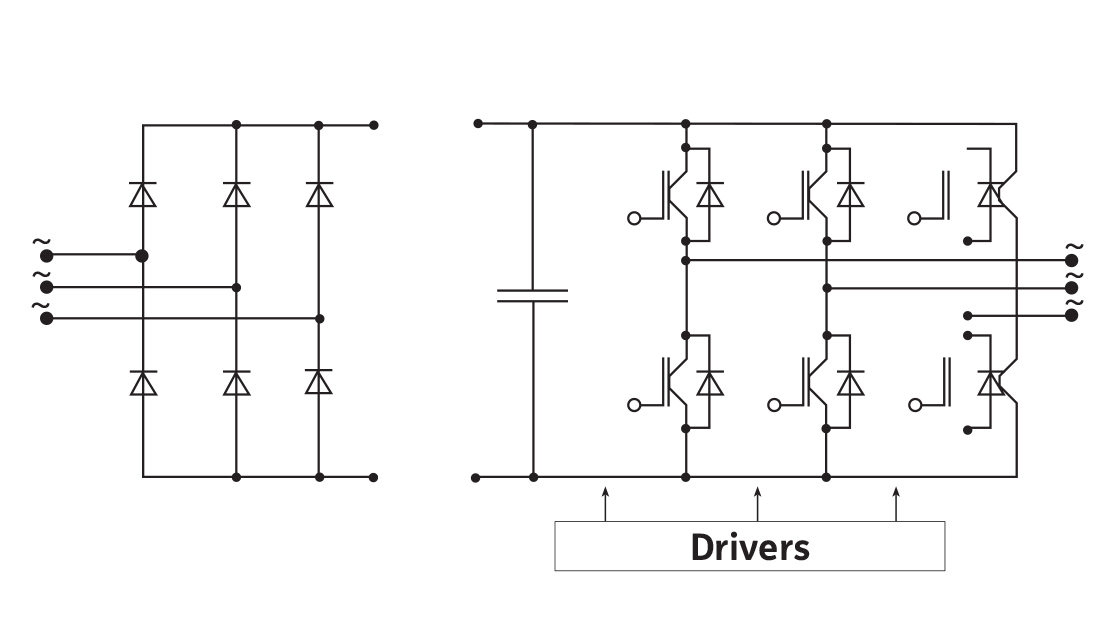

-- 3-phase diode/thyristor rectifier and 3-phase IGBT inverter
-- Brake chopper optional

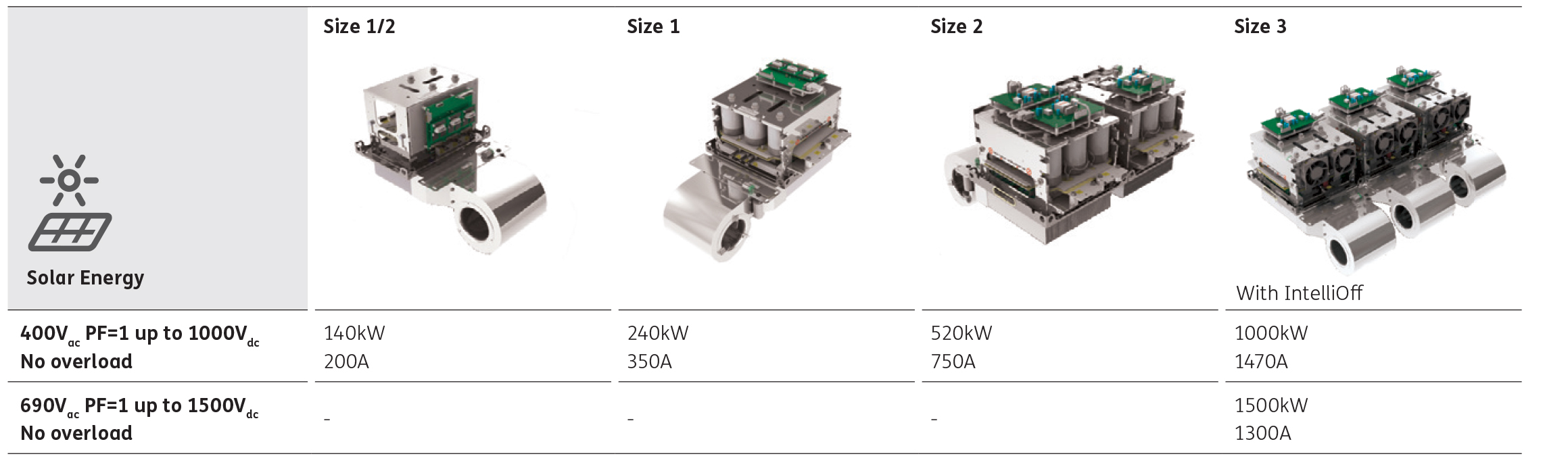

Solar PV inverters

SEMIKUBE at a glance

-- 4 sizes
-- Power assembly includes IGBTs, capacitor banks, drivers, current and temperature sensors

Pre-qualified platform

-- Complies with environmental standards (IEC 60721-3)
-- Automated electrical tests and 100% fully tested in production

Easy maintenance

-- DC connection via fast-mount clamps
-- Fast replacement time of 30mins
-- Power assembly weighs less than 30kg

Key features

75kVA up to 1500kVA
Power density up to 5.7kVA/litre
Size 3 with new ASIC chipset
Increased SOA with multi switch modes		             Drivers and current sensors
Forced air cooled platform
UL recognised
Flexible design
