- SIEMENS 2.3 YAW MOTORSIEMENS 2.3 YAW BRAKE MOTOR WITH AND WITHOUT RESOLVER WECS PARTNUMBERWith Resolver EIASE90L4-460-B35-R Without EIASE90L4-460-B35 Siemens #A9B00400418 2.9kW(3.89HP) 1680RPM 265D/460Y 60HZ CLASS H 90 FRAME IP55 TEFC IMB35 S3 DUTY CW/SPECIAL NDE SHAFT Learn More
- VESTAS V90 YAW MotorVESTAS V90 YAW Motor From WECS Renewables AMBZ100LAA4-690 (V90yaw/brake); 2.5KW, 400/Delta;690/Y;2.5kw/3.4HP, 60hz, 1590RPM, 4 pole, IP54; 5.7Amps, 1.0 SF, IE1 efficiency class; Duty Cycle : S2-60Min, S3-60 %, F Insulation Class, IMB5 flange, Stainless steel brake, Brake: 24.0NM, 400v, 60hz 0.40A. Learn More
- XB9785 GE pitch transformerGE wind Turbine 1.5 Series Pitch Transformer: Wecs # XB9785 GE # 104W4934P001 Mounting Plate : wecs # 810024997 ge # 107W6764P001 Ge 1.5 Pitch Transformer and Mounting Plate Learn More
- OEM Replacement yaw motor brake 1.x 2.x NabtescoFits Ge 1.x 2.x Nabtesco WECS Part # AMBY132S/A6-4/8-690 GE Wind part # 109W7074P001 OEM Replacement yaw motor brake 1.x 2.x Nabtesco Learn More
- XB9939 GE pitch transformerGE wind Turbine 1.5 Series Pitch Transformer: Wecs # XB9939 GE # 151X1225DD01PC02 Mounting Plate : wecs # 810024997 ge # 107W6764P001 Ge 1.5 Pitch Transformer and Mounting Plate Learn More
- GE 1.5 HIGH SPEED BRAKESvendborg Brake GE wind Turbine 1.5 Series Genuine spare parts approved by OEM's Having access to adequate spare parts stock is of vital importance for our customers, and we have therefore put together an extensive spare parts package, including: Learn More
- Siemens 2.3 high speed brakeSiemens 2.3 high speed brake 494-0201-801, BRAKE PAD SET SB4902 BSXX 300 (Svendborg OEM direct replacement for obsolete 490-0402-803) Learn More

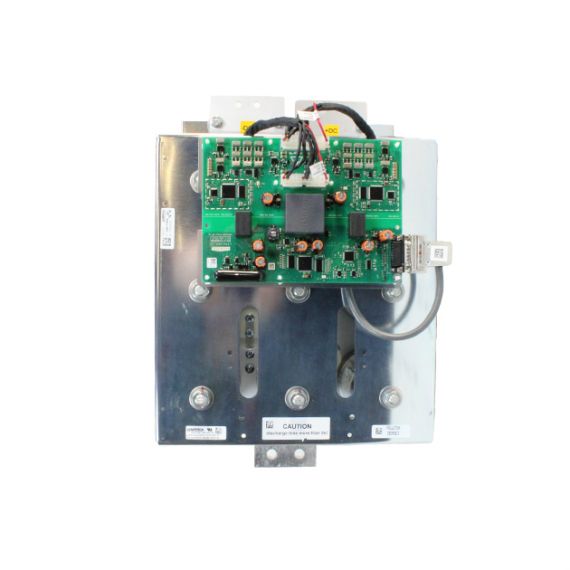

- Semikron SEMIKUBE75kVA up to 1500kVA Power density up to 5.7kVA/litre Size 3 with new ASIC chipset Increased SOA with multi switch modes Drivers and current sensors Forced air cooled platform UL recognised Flexible design Learn More
- Scancon SCH128M EncoderScancon’s SCH128M Encoder is designed for applications where performance is critical. Rugged and reliable, this thin, thru-bore encoder incorporates advanced noise immunity features and is ideal for motor and drive applications requiring a NEMA 56C face mount. Learn More
- Nabtesco yaw motorFits Ge 1.5 Nabtesco # 20049082 GE #109W7074P001 BA 132MB4, WECS IEC BRAKE MOTOR WITH B5 FLANGE AND DC BRAKE6.00 TYPE BA 132MB4 - 3 PHASE - 60HZ - 230/460V - 9.2KW - 1800RPM - IEC 132 "M" FRAME- CAST ALUMINIUM CONSTRUCTIONCLASS F INSULATION - B TEMPERATURE RISE - IMB35 MOUNTING (FOOT MOUNT WITH B5 D FLANGE INSTALLEDBRAKE TYPE - DC WITH (VB) 230 VAC SUPPLY (SINGLE PHASE) AND MAXIMUM 150NM BRAKING TORQUE(Equivalent to IEA132S3-4-59) Learn More

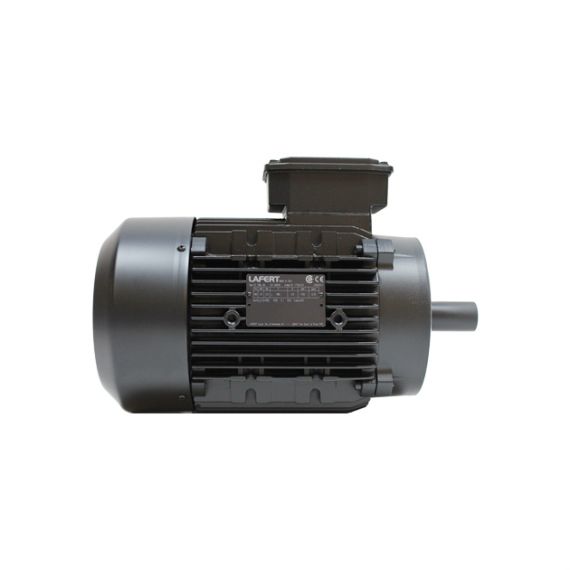

- VESTAS V47 YAW MotorVESTAS V47 YAW Motor From WECS Renewables ST100LS6-690-B14-S-CG [TBC] (V47 Yaw Brake Motor) 3 Phase 60HZ, s1 (1.15), TEFC, Round Body, 2.50HP/1.8 KW, 1130 RPM, Class 'F' Insulation, 400-690S, IP55 Protection, IMB4 Mounting; with FL100B14 'C' Flange installed with an Oil seal. Extra Features include upgraded IP54 to IP55 protection, Learn More
- Siemens Yaw Motor with or without ResolverThis is an Upgraded Yaw Motor for the Siemens yaw motorWECS Part # WECS90L4-460-B35 & with the resolver WECS90L4-460-B35-R Learn More
- WECS Drop in replacement for Beijing yaw motorDrop in replacement for Beijing yaw motor fits GE 1.5-1.6 with Nanjing Yaw drive Learn More
- W91 Drop in Replacement UPS for Ge Mitsubishi SuzlonW91 UPS provides double conversion online power for light industrial applications, point of sale, servers, voice & data networks, and laboratories. W91 features unity output power factor to support up to 43% more critical loads than typical UPSs.Extended battery runtimes are available from the W91 by adding up to seven matching battery packs. W91 battery charger can be programmed to provide up to 8 amps of recharge current to insure batteries are recharged quickly and prepared for... Learn More
- Suzlon Yaw MotorWECS CUSTOM WIND DUTY 3 PHASE BRAKE MOTOR 5.5hp / 1720rpm / 600V / 3ph / 60Hz / Class H Insulated / 100L Frame c/w B5 Metric 'D'Flange / Round Body / S2 Duty / AC5 Rear Mounted 45Nm Brake c/w 575V Coil / High Brake switch dry contact feedback switchTemperature Bearings / 1.15SF / TEFC Rated to 50° Class H insulation and inverter duty wire and Brake indication switch for controller feed back Learn More
- WECS Slew Ring Repair toolThe WECS GE 1.X Slew Ring Surface Repair Tool uses a custom for WECS turbine style disc brush ideal for heavy deburring applications. The unique combination of Silicon Carbide and Ceramic filaments allow the brush to cut faster and last longer. The turbine style filament is a high-density fill that is ideal for short cycle times and long tool life. This tool will remove sharp edges, that have been caused by previous over warn pucks where the piston has damaged the slew ring. Rated as an 80-grit... Learn More
- SKiiP 2413 GB123-4DUK515DOWNLOAD THE FLYER 2-pack-integrated intelligent Power System SKiiP 1813 GB123-4DUK515 Features* • SKiiP technology inside • Trench IGBTs • CAL HD diode technology • Integrated current sensor • Integrated temperature sensor • Integrated heat sink • UL recognized File no. E63532 Typical Applications • Renewable energies • Traction • Elevators • Industrial drives Footnotes 1) With assembly of suitable MKP capacitor per terminal Learn More
- SKiiP 1813 GB123-3DUK514DOWNLOAD THE FLYER 2-pack-integrated intelligent Power System SKiiP 1813 GB123-3DUK514 Features* • SKiiP technology inside • Trench IGBTs • CAL HD diode technology • Integrated current sensor • Integrated temperature sensor • Integrated heat sink • UL recognized File no. E63532 Typical Applications • Renewable energies • Traction • Elevators • Industrial drives Footnotes 1) With assembly of suitable MKP capacitor per terminal Learn More
- Gamesa Yaw Brake ClampGamesa Yaw Brake Clamp Made By Antec WECS Renewables is a Stocking Supplier for all your Antec Gamasa Yaw Brake parts. We stock the following parts Original Equipment parts Pistons/Active Pads/Passive Pads/Seals/ORings Centering Pin Thrust Piece/Spring Backplate Learn More
- GE Fan Converter Motor UpgradeWECS Part Number ME175047 replacement for GE Part Number UX56700100528, T56114702208 Learn More
- WECS Super PistonWECS is now selling a composite yaw super piston that offers vibration dampening, smooth, quiet operation for longer service life over bronze. Material Benefits Self-lubricating (no grease required*) Weight reduction (1/6th the weight of bronze) Low wear rate (less than 1mm/year) Long service life (10mm of useable material thickness) Smooth, quiet operation (no fog horning) High load capacity Uses OEM set up for 12 or 18 piston configuration High shock load... Learn More
- GE 1.x & 2.x New IGBTELECTRICAL POWER CONTROLLER COMPONENTS Wecs has partner with Semikron to bring replacement IGBTS to the wind industry for the GE 1.X and 2.X wind turbines Learn More
- Mechanical Repair and UpgradeWECS re-engineers the mechanical Pitch mechanism for the MHI 600 and 1000 Version turbine to re-condition and strengthen those areas that are most problematic in the physical design of the OEM materials.WECS inventories “CORE” rebuild materials and/or manufactures NEW. Learn More
- GE Yaw Piston Assembly componentsGE 1.5/6 YAW PISTON Assembly components The PISTON assembly utilized on the GE platform consists of a soft bronze PISTON with accessory components such as the spring-washers, Piston stem, various O-rings and a retaining clip. WECS inventories O&M levels of each item to facilitate medium levels of availability, including kits of 18 and 24 for complete change-out. WECS inventories various skid PUCKS in various OEM specifications and our unique SUPERPUCK format that testing... Learn More
- SHEAR BOLT CABLE CONNECTORSLOW VOLTAGE and MEDIUM VOLTAGE electrical cable connections, including cable SPLICES AND TERMINATIONS, have historically been made using an infinite array of compression connectors and the OEM and/or UL approved appropriate tools. WECS introduced a new style connector called SHEAR-BOLT several years ago, and the product line is growing in inventory, and with our key manufacturers of MV Cable terminations, splices and TEE-Bodies. NOT ALL SHEAR-BOLT methods of connection to the conductor wire... Learn More
- WECS Super Yaw PuckSelf-lubricating composite material manufactured with polyester and PTFE combined textile and polyester resin with the solid lubricants PTFE and molybdenum disulfide (MoS2) evenly dispersed throughout the resin system Material Benefits Self-lubricating High load capacity Ultimate compressive strength up to 50,000 psi High shock load capabilities Low coefficient of friction Smooth, quiet operation Low Wear rate Long service life WECS offers a low maintenance and cost-effective... Learn More
- WECS DESIGNED YAW PISTON PULLERThe frustration of the difficulty in removing the damaged YAW PISTON from a GE wind turbine an be easily resolved by use of the WECS design Yaw Puller device shown here. Yaw pistons can become very difficult to remove in situations where there is damage to the device or simply too much grease and dirt. The confined Space within the turbine makes it difficult or impossible to easily remove the spent piston with Common tools or efforts. The WECS YAW Piston removal tool is designed by Wind... Learn More
- WECS RENEWABLES SHEAR-BOLT CABLE LANDING SYSTEMConnect up to 10 (or more) 1000 MC AL or CU cables in your Pad Mount Transformer, Inverter or TURBINE Connections In 1/3 the time using the accuracy and simplicity of the WECS RENEWABLES SHEAR-BOLT CABLE LANDING SYSTEM. No-Compression ToolsNo-Muscling rigid cableNo-Torque WrenchNo Loose Connections The speed for making connections with faultless accuracy increases by 66% with no more hydraulic tool leaks or recalibration, never lose a DIE and ALWAYS have the cable positioned correctly... Learn More
- Avtron Encoder Replace And UpgradeThe Avtron AV56 encoder has a tremendous record of reliability in wind applications from blade pitch to generator control. NidecAvtron is committed to always improving our products. So we’ve created an improved model which offers easier installation, greater durability and onboard diagnostics. Learn More
- YAW MOTOR- UNIVERSAL GE 1.5 APPLCIATIONWECS understands the nature of the manufacturing history of the GE 1.6/1.6 turbine, and that delivery of identical turbines across a single year was not possible.That led to a constant upgrading and changing of the yaw system motor configuration, and the need to inventory multiple motor configurations and voltages.WECS has developed a single motor with built-in accessories and/or connectable components to make one motor to fit several needs. Learn More
